The Development Kit

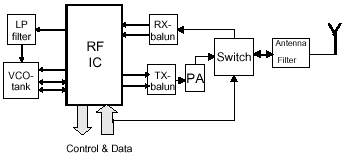

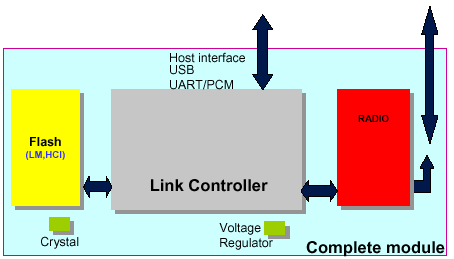

We chose Ericsson's Developmet Kit because it was one of the most cost effective development tools in the market with sufficient capabilities. Below, you can see the block diagram and the kit itself. The modue in the middle is sold seperataly and after we design our software, the PDAs will be integrated with the module. So that each PDA will become bluetooth enabled.

Technical Features



--2.4 GHz ISM Open Band Globally free available frequency, 79 Mhz of spectrum utilezed.Frequency Hopping and Time Division Duplex



-10-100 meter range, personal bubble -8 active devices per piconet (share datarate)
-Up to 10 piconets in bubble (full datarate)


- 1 MB /s gross rate
- Future version: Higher speed
- Simultaneous voice/data capable
- 432 Kbps (full duplex), 71/56 Kbps (asymetric) or
-3simultaneous full duplex voice per piconet
(CVSD@64 Kbps) or
- a combination of data and voice



RADIO

  • Filters and baluns integrated into LTCC substrate
  • RF IC flip chip mounted
  • Laser trimming used to optimize performance
  • 100mW optional version with PA and Optional Gain Control
    (-30 to +20dBm)
  • Small outline BGA type package
    		•
